OpenAPI specification generation

Page summary:
Strapi provides a CLI tool to automatically generate OpenAPI 3.1.0 specifications documenting all API endpoints, parameters, and responses. The generated specification can be integrated with Swagger UI for interactive API documentation.

Strapi provides a command-line tool to generate OpenAPI specifications for your applications.

The CLI tool automatically creates comprehensive API documentation that describes all available endpoints, parameters, and response formats in your Strapi application's Content API. Among the possible use cases, the generated specification can then be integrated into documentation tools like Swagger UI .

🚧 Experimental feature

The OpenAPI generation feature is currently experimental. Its behavior and output might change in future releases without following semantic versioning. For additional information and context, please refer to the Strapi Contributor Docs .

Generating an OpenAPI specification

The OpenAPI generation tool is included with Strapi core and doesn't require additional installation. You can use it directly from the command line in any Strapi project to generate comprehensive API documentation.

Note

Known limitation for nested component required metadata

The Admin panel can mark inner fields on a component as required, yet the generated OpenAPI file may still skip a required entry for those scalars. The parent object (for instance a component inside a dynamic zone) might list required while the nested properties do not. There is more background in GitHub issue #2236. Client generators that trust the raw schema alone can therefore emit types that look looser than what Strapi actually enforces.

This area is still experimental, same as the warning banner at the top of the page, so keep validating nested payloads in application code or with the REST validation helpers from the controllers guide instead of assuming every Admin rule is mirrored in the exported JSON schema yet.

CLI usage

Executing the command without any arguments will generate a specification.json file at the root of your Strapi folder project:

Yarn
NPM

terminal

BASH

yarn strapi openapi generate

terminal

BASH

npm run strapi openapi generate

You can also pass an optional --output argument to specify the path and filename, as in the following example:

Yarn
NPM

terminal
BASH
yarn strapi openapi generate --output ./docs/api-spec.json

terminal
BASH
npm run strapi openapi generate -- --output ./docs/api-spec.json

Specification structure and content

The generated OpenAPI specification follows the OpenAPI 3.1.0 standard and could look like in the following shortened example:

{
  "openapi": "3.1.0",
  "x-powered-by": "strapi",
  "x-strapi-version": "5.21.0",
  "info": {
    "title": "My Strapi API",
    "description": "API documentation for My Strapi API",
    "version": "1.0.0"
  },
  "paths": {
    "/api/articles": {
      "get": {
        "operationId": "article/get/articles",
        "parameters": [
          {
            "name": "fields",
            "in": "query",
            "schema": {
              "type": "array",
              "items": { "type": "string" }
            }
          }
        ],
        "responses": {
          "200": {
            "description": "Successful response",
            "content": {
              "application/json": {
                "schema": {
                  "type": "object",
                  "properties": {
                    "data": {
                      "type": "array",
                      "items": { "$ref": "#/components/schemas/Article" }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
  },
  "components": {
    "schemas": {
      "Article": {
        "type": "object",
        "properties": {
          "id": { "type": "string" },
          "title": { "type": "string" },
          "content": { "type": "string" }
        }
      }
    }
  }
}

Download an example of a complete specification file

The generated OpenAPI specification includes all available API endpoints in your Strapi application, and information about these endpoints, such as the following:

CRUD operations for all content types
Custom API routes defined in your application
Authentication endpoints for user management
File upload endpoints for media handling
Plugin endpoints from installed plugins

Configuring

By default, Strapi does not expose HTTP endpoints for the generated OpenAPI specification. To opt in, add an openapi key to the /config/server file.

HTTP endpoint access

The openapi configuration accepts 2 sub-keys, content-api and admin, each with an access property:

Sub-key	Endpoint	`access` value	Default	Behavior
`content-api`	`GET /api/openapi.json`	`disabled`	Yes	Endpoint not registered.
`content-api`	`GET /api/openapi.json`	`public`	No	Endpoint accessible without authentication.
`admin`	`GET /admin/openapi.json`	`disabled`	Yes	Endpoint not registered.
`admin`	`GET /admin/openapi.json`	`authenticated`	No	Endpoint requires an authenticated admin user.

The following example exposes both endpoints:

JavaScript
TypeScript

/config/server.js
module.exports = {
  openapi: {
    'content-api': {
      access: 'public',
    },
    admin: {
      access: 'authenticated',
    },
  },
};

/config/server.ts
export default {
  openapi: {
    'content-api': {
      access: 'public',
    },
    admin: {
      access: 'authenticated',
    },
  },
};

Caution

Setting content-api.access to authenticated or admin.access to public throws an error at startup.

Note

Role-based access control for OpenAPI endpoints is not supported yet. The admin endpoint uses the admin::isAuthenticatedAdmin policy and does not filter by admin role or permission: any authenticated admin user can read the specification.

Tip

A public Content API specification describes your entire Content API surface, including content types that are not publicly readable, to anyone who can reach the endpoint. If you do not want to expose the specification without authentication, leave content-api.access at 'disabled' and use the CLI to generate a static file instead.

Endpoint options

Besides access, each endpoint (content-api and admin) accepts the following options:

Option	Type	Default	Description
`route.path`	String	`'/openapi.json'`	Subpath where the specification is served. Resolved under `/api` for `content-api` and under `/admin` for `admin`.
`cache.enabled`	Boolean	`true`	Enables file-based caching of the generated specification.
`cache.maxAgeMs`	Number	`60000`	Maximum age of the cache file, in milliseconds, before the specification is regenerated.
`cache.filePath`	String	`.strapi/openapi/<type>.json`	Path of the cache file. Relative paths are resolved from the application root.

With the default route.path, the full URLs are http://localhost:1337/api/openapi.json for the Content API endpoint and http://localhost:1337/admin/openapi.json for the Admin endpoint.

Caution

Both endpoints must resolve to different full paths. If the content-api and admin endpoints resolve to the same URL, Strapi throws an error at startup.

Integrating with Swagger UI

Tip

If you exposed an HTTP endpoint, you can point Swagger UI directly at the live URL (e.g., http://localhost:1337/api/openapi.json) instead of generating a static file. Skip step 1 below and use the endpoint URL as the url value in step 3.

With the following steps you can quickly generate a Swagger UI-compatible page:

Generate a specification:

Yarn
NPM

terminal
BASH
yarn strapi openapi generate --output ./public/swagger-spec.json

terminal
BASH
npm run strapi openapi generate -- --output ./public/swagger-spec.json

Update the /config/middlewares.js configuration file with the following code:

JavaScript
TypeScript

/config/middlewares.js
module.exports = [
  'strapi::logger',
  'strapi::errors',
  {
    name: 'strapi::security',
    config: {
      contentSecurityPolicy: {
        useDefaults: true,
        directives: {
          'script-src': ["'self'", "'unsafe-inline'", 'https://unpkg.com'],
          'style-src': ["'self'", "'unsafe-inline'", 'https://unpkg.com'],
          'connect-src': ["'self'", 'https:'],
          'img-src': ["'self'", 'data:', 'blob:', 'https:'],
          'media-src': ["'self'", 'data:', 'blob:'],
          upgradeInsecureRequests: null,
        },
      },
    },
  },
  'strapi::cors',
  'strapi::poweredBy',
  'strapi::query',
  'strapi::body',
  'strapi::session',
  'strapi::favicon',
  'strapi::public',
];

/config/middlewares.ts
export default [
  'strapi::logger',
  'strapi::errors',
  {
    name: 'strapi::security',
    config: {
      contentSecurityPolicy: {
        useDefaults: true,
        directives: {
          'script-src': ["'self'", "'unsafe-inline'", 'https://unpkg.com'],
          'style-src': ["'self'", "'unsafe-inline'", 'https://unpkg.com'],
          'connect-src': ["'self'", 'https:'],
          'img-src': ["'self'", 'data:', 'blob:', 'https:'],
          'media-src': ["'self'", 'data:', 'blob:'],
          upgradeInsecureRequests: null,
        },
      },
    },
  },
  'strapi::cors',
  'strapi::poweredBy',
  'strapi::query',
  'strapi::body',
  'strapi::session',
  'strapi::favicon',
  'strapi::public',
];

This will ensure the Swagger UI display from unpkg.com is not blocked by Strapi's CSP policy handled by the security middleware.

Create a public/openapi.html file in your Strapi project to display the Swagger UI, with the following code:

<!DOCTYPE html>
<html>
  <head>
    <title>API Documentation</title>
    <link
      rel="stylesheet"
      type="text/css"
      href="https://unpkg.com/swagger-ui-dist@5.0.0/swagger-ui.css"
    />
  </head>
  <body>
    <div id="swagger-ui"></div>
    <script src="https://unpkg.com/swagger-ui-dist@5.0.0/swagger-ui-bundle.js"></script>
    <script src="https://unpkg.com/swagger-ui-dist@5.0.0/swagger-ui-standalone-preset.js"></script>
    <script>
      window.onload = function () {
        SwaggerUIBundle({
          url: './swagger-spec.json',
          dom_id: '#swagger-ui',
          presets: [
            SwaggerUIBundle.presets.apis,
            SwaggerUIStandalonePreset
          ],
          layout: 'StandaloneLayout',
        });
      };
    </script>
  </body>
</html>

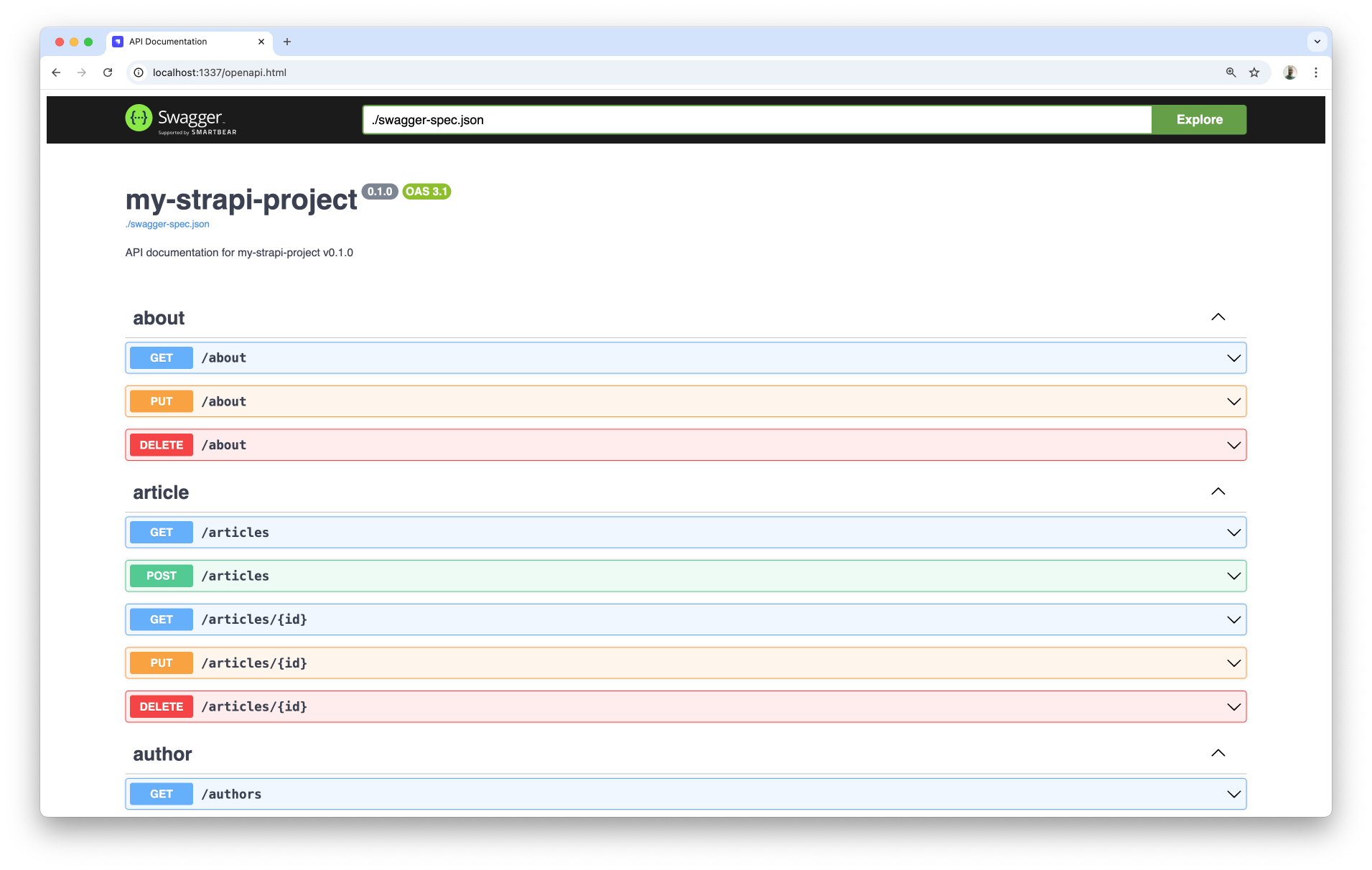

Restart the Strapi server with yarn develop or npm run develop and visit the /openapi.html page. The Swagger UI should be displayed:
